Description

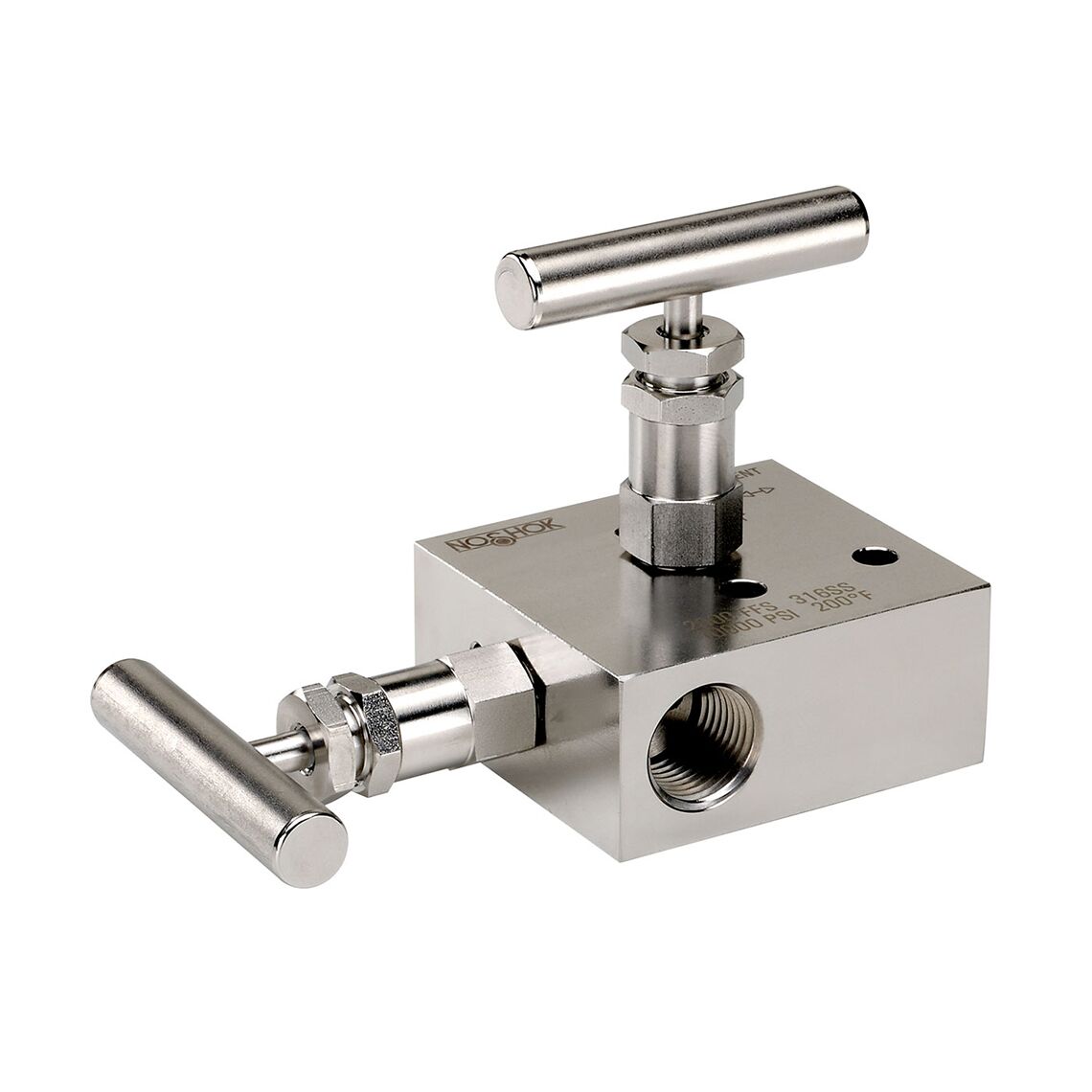

Hard Seat, 1/2″ National Pipe Thread (NPT) Female x 1/2″ National Pipe Thread (NPT) Female, Steel, 0.187 in” Orifice, 2 Manifold Valve
Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right
